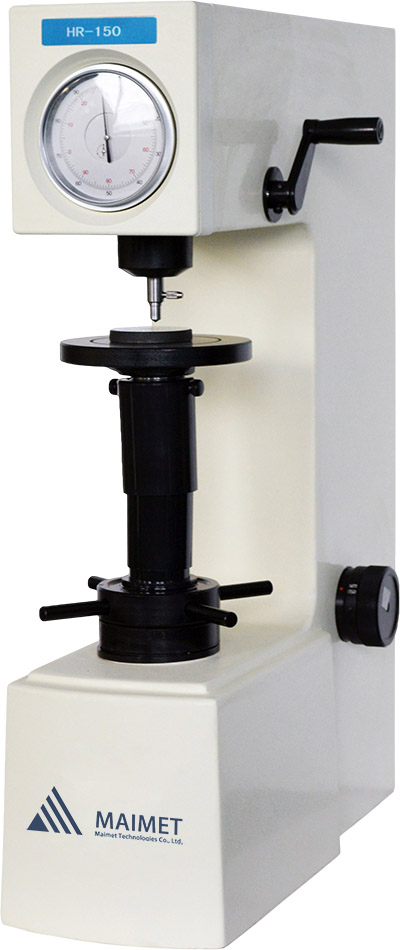

HR-150 Rockwell Hardness Tester
HR-150 Rockwell hardness tester is a popularly-used hardness testing instrument to measure the Rockwell hardness of the materials. No need for power supply, the speed of the test force loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has easy operation and stable performance, therefore it is widely used.
Application Range
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification
| Model | HR-150 |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter |
Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Manual |
| Hardness Reading | Dial |
| Hardness Resolution | 0.5HR |
| Max. Height of Specimen | 185mm |
| Throat | 165mm |
| Execute Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
| Dimension |
520×245×700mm， Packing Dimension: 650×370×950mm |
| Weight |
Net Weight: 78kg，Gross Weight: 100kg |
