Instruction

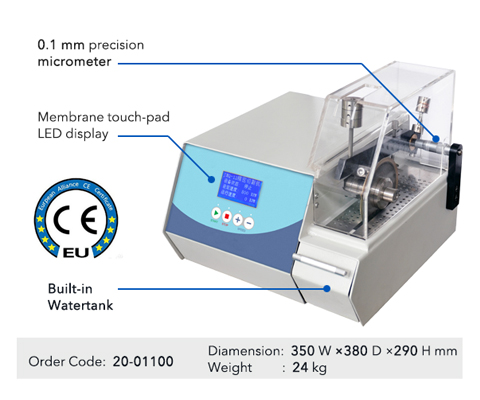

       Micro-100 low-speed cutter can precisely cuts most kinds of materials, widely used in metallographic sample preparation and analysis laboratories, and is an necessary equipment for failure analysis.

       Suitable for cutting most material including brittle or ductile metals, composites, cements, laminates, plastics, electronic devices, and biomaterials.

     Versatility
  Optional clamps/vises for different shapes of specimens

     Reliability Safety
  Transparent hood protects user
  Built-in cooling water tank to prevent the sample from being damaged by overheating

     Easy Operation & Display
   Membrane touch-pad control panel,  LED display
  0.1 mm precision micrometer, easy precise adjustment of sample positionRS232 interface & Built-in printer, print result directly

Technical Specification


Item	Spec.
Cutting Method	Deadweight, Chop cutting
Cutting Capacity	Φ 25 mm
Disc Speed	50-800 rpm
Disc Dimension	Φ 100*0.7*12.7 mm
Motor Power	600 W
X-Axis Positioning	12 mm, accuracy 0.1mm
Power Supply	110V 60 Hz / 220V, 50Hz
Display	LCD Display
