Instruction

      Mega-350S/380S/400S are manual/automatic abrasive cutter, provides consistent and repeatable cut quality for medium-sized samples, widely used in metallographic sample preparation and analysis laboratories.

      Suitable for cutting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts, rocks.

       Versatility
  Quick vises for different shapes of specimens
  Manual / Automatic cutting mode, flexible feeding method

       Easy Operation & Display
  10 inch high-definition touch screen, intuitive operation

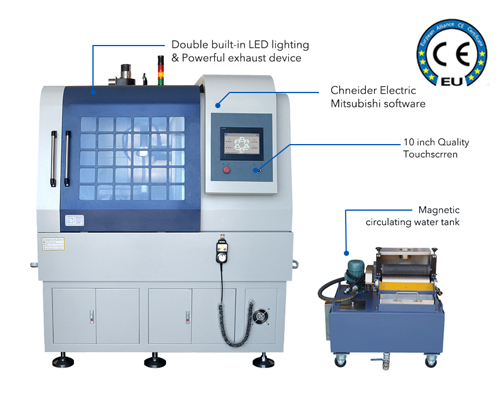

  Double built-in LED lighting & Powerful exhaust device
  Cursor positioning & mobile magnetic filter circulating water tank

       Reliability Safety
  Schneider electric, and Mitsubishi software, ABB motor (except Mega-350S)
  X, Y, Z direction automatic precise control, or manual electronic handwheel control
  Pulse cutting & continuous cutting, according to hardness of the material change the feed speed
  Enclosed work area & open cover stop protection, safer operation

Technical Specification


	Mega-350S	Mega-380S	Mega-400S
Cutting	Manual/automatic, X, Y, Z-axis , 10-inch industrial touch screen control
Feeding Rate	1-200 mm/min
Cut-off Wheel	Φ350×2.5×32 mm	Φ380×2.8×32 mm	Φ400×3.0×32 mm
Cutting Table (X*Y)	410×350 mm	450×350 mm	530×630 mm
Y Axis	250 mm	250 mm	420 mm
X Axis	140 mm	100 mm	110 mm
Z Axis	160mm	200 mm	230 mm
Cutting Capacity	100×100 mm	120×120 mm	300×150 mm
Motor Power	4kW	ABB motor, 5.5kW	ABB motor, 7.5kW
Spindle Speed	500-2800 r/min
Feeding Motor	Stepper motor	Servo motor
Power Supply	380V, 50Hz, 20A	380V, 50Hz, 30A
Dimensions	1200×1100×1800mm	1450×1000× 1850mm	1650×1350× 1900mm
Net Weight	1700kg	1800kg	2500kg
Water Tank Capacity	80L	120L
Pump Flow	50L/min	100L/min
Water Tank Dimensions	610×550×680mm	700×630×800mm
Water Tank Weight	85kg	90kg
