Instruction

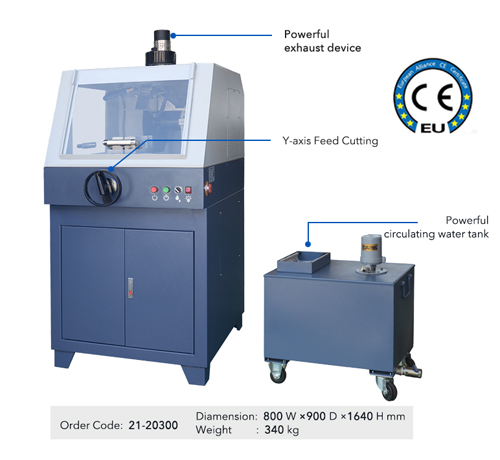

       Mega-350Y is a manual abrasive cutter, provides consistent and repeatable cut quality for medium-sized samples, widely used in metallographic sample preparation and analysis laboratories.

       Suitable for cutting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts, rocks.

     Versatility
  Vertical / quick vises for different shapes of specimens

     Easy Operation
  Double transparent plexiglass windows
  Built-in LED lighting & Powerful exhaust device, observe the sample cutting more clearly
  Built-in flushing gun, equipment maintenance is more convenient

     Reliability Safety
  5.5hp [4kW] quality motor, easily cut large or high-strength materials
  Enclosed work area & open cover stop protection, safer operation
  External cooling water tank to prevent the sample from being damaged by overheating

Technical Specification


Item	Spec.
Cutting	Manual, Y-axis Feed
Y-axis Movement	265 mm
Disc Dimension	Φ 380*2.8*32 mm
Disc Speed	2800 rpm
Cutting Capacity	100*120 mm
Motor Power	4 KW
T-Table Dimension	250*240 mm, 12 mm T Slot
Water Tank	100 L, 25 L/min
Power Supply	380V 50 Hz
