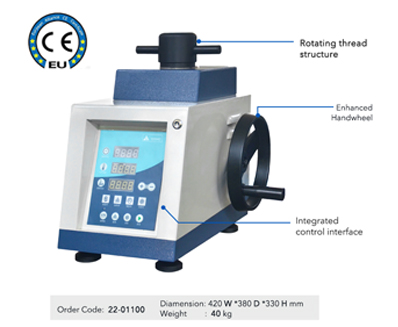

      Desert-100 is a reliable, robust manual mounting press, it is an economical choice for specimen mounting, widely used in metallographic sample preparation and analysis laboratories.

      Suitable for mounting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts samples.

     Versatility
  Ф25mm, Ф30mm, Ф40mm mounting mold  for choices

     Easy Operation
  Integrated control interface, easy to set parameters
  Real-time display of mounting time and temperature, easy to check with more user-friendly operation
  Large size handwheel, more efficient ascent

     Reliability Safety
  [800W] heating power, faster sample preparation
  Rotating thread structure, easy and safe to open the cover
  Equipped with water cooling system, sample preparation is safe and fast

Technical Specification


Item	Spec.
Mould Diameter	Ф25mm Ф30mm Ф40mm (One for choice)
Mould Height	115 mm, effective height 60 mm
Heating Power	800 W
Heating Temperature	0-200 ℃
Cooling	External water cooling
Power Supply	220V, 50Hz, 6A
